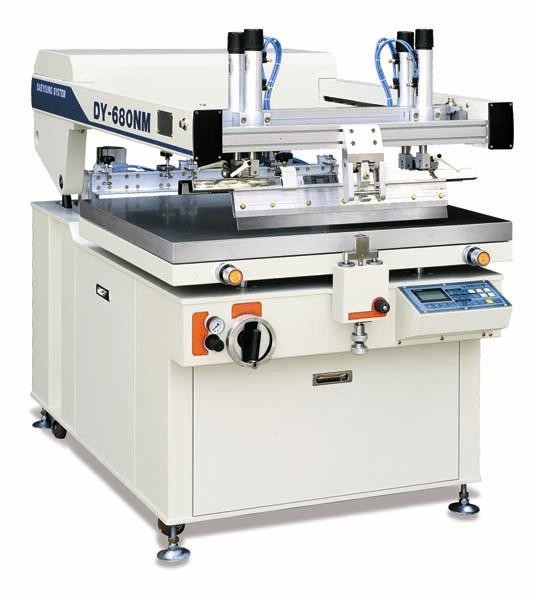

This Korea SHELL series printing machine is the best selling printing machine in Malaysia. It is equipped as a dual-axis servo driven screen press. User can easily program the print and flood stroke lengths and save the job parameters in the on-board PLC. All job parameters can be quickly recalled for ultra-fast set-ups and job change-over. Besides, the touch screen is simple to learn with icon graphics on the membrance switch panel. All mechanical adjustments are positioned within easy reach of the operator. This machine uses high quality electrical and pneumatic components which the end result really show its excellency.
|
Specification for HK-680: |
||
|
|
NM |
SM |
|
Head Lift Controlled by |
AC Inverter Motor |
AC Servo Motor |
|
Print Head Stroke |
Controlled by AC Servo Motor Drive |
|
|
Progressive Screen Lifting |
Pneumatic |
|
|
Max, Printing Area (DxW) |
600 x 800mm |
|
|
Working Table Size (DxW) |
750 x 950mm |
|
|
Table Adjustment |
X,Y ±10mm / θ1.7° |
|
|
Vacuum Area (DxW) |
620 x 820mm |
|
|
Vacuum Hole Size / Pitch |
Ø1.5 / 20mm |
|
|
Screen Frame Size (Outer(DxW) |
Max, 950 x 1,200mm |
|
|
Screen Frame Thickness |
20 ~ 45mm |
|
|
Max, Printing Thickness |
30mm |
|
|
Squeegee Angle |
60° ~ 80° |
|
|
Take Up Adjustment |
0 ~ 20mm |
|
|
Printing Speed (cycle) |
Max, 1,200 /hour |
|
|
Squeegee Speed |
10 ~ 850mm/sec |
|
|
Squeegee Pressure |
0.1 ~ 0.5 MPa |
|
|
Electric Source |
AC220V / 1Ø / 1.5Kw |
|
|
Power Requirement |
220V / 1 phase |
|
|
Input Air Pressure |
5 to 6 bars (87 psi) |
|
|
Air Consumption |
0.8 liter / 1 cycle |
|
|
Machine Dimension(W x L x H) |
1,000 x 1,450 x 1,350mm |
|
|
Machine Weight |
570 Kg |
|
| Colour(s) | No |
|---|---|
| Packing / Size | 1 |
| Unit of Measurement | UNIT |
| Manufacturer | DYSS |
| Country of Origin | South Korea |
