Features:
* This machine uses AC Servo Motor for coating emulsion which has greatly reduced vibration and noise during coating process.
* User can extend the coating time unlimitedly.
* This machine uses PLC and digital input to control its function
* User can attach the screen frame easily by air clamp
|

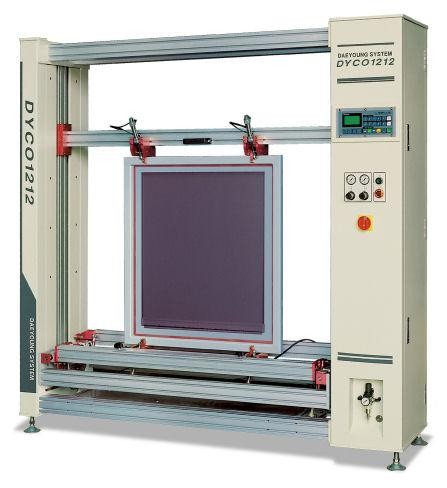

Specification for HK Stencil Coating Machine HK-DYCO1010D: |
|
|
Bucket Drive System |
AC Servo Motor 1axis |
|
Screen Frame Size (Outer(DxW)) |
Max,1,000 x 1,000mm |
|
Screen Frame Size (Outer(DxW)) |
Min,300 x 300mm |
|
Screen Frame Thickness |
20 ~ 55mm |
|
Coating Speed |
10 ~ 250mm/sec |
|
Coater Pressure |
0.1 ~ 0.5 Mpa |
|
Electric Source |
AC220V / 1Ø / 0.6Kw |
|
Input Air Pressure |
0.56 Mpa |
|
Air Consumption |
0.3 liter / Double-side |
|
Machine Dimension(W x L x H) |
1,250x970x1,850mm |
|
Machine Weight |
320 Kg |
| Colour(s) | No |
|---|---|
| Packing / Size | 1 |
| Unit of Measurement | UNIT |
| Manufacturer | DYSS |
| Country of Origin | South Korea |
